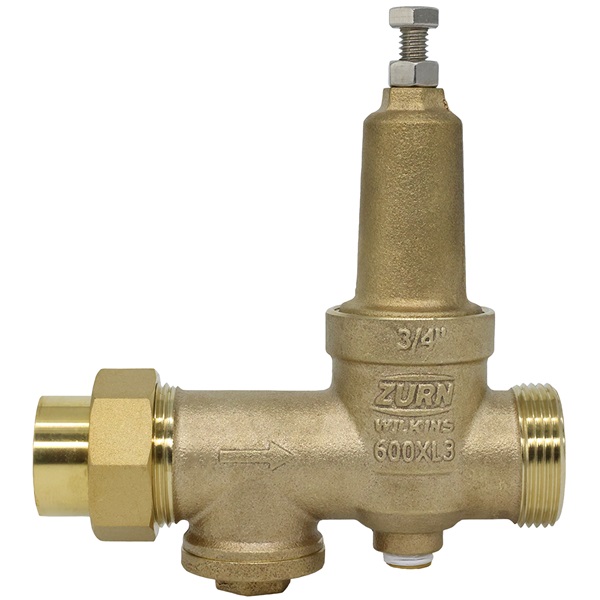

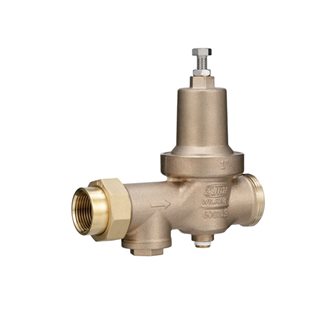

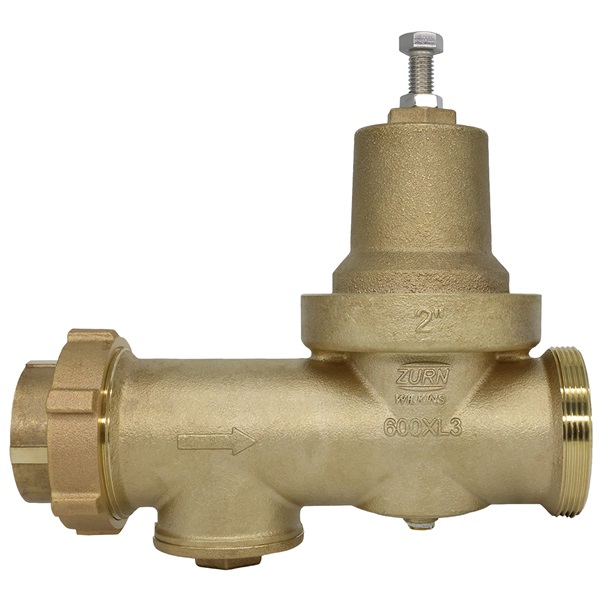

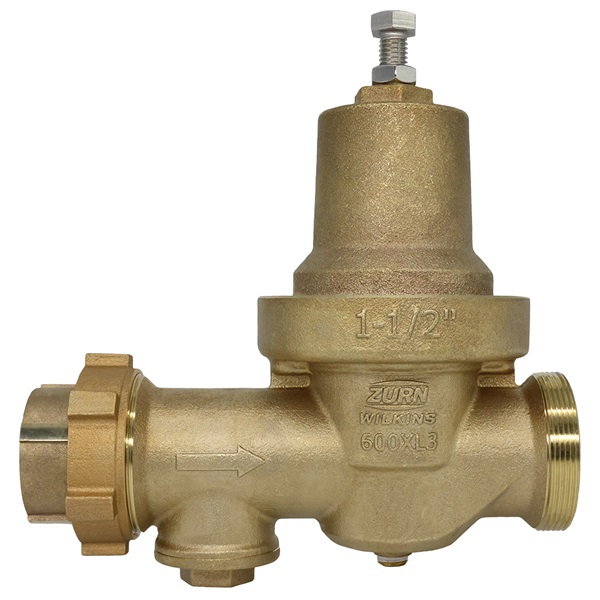

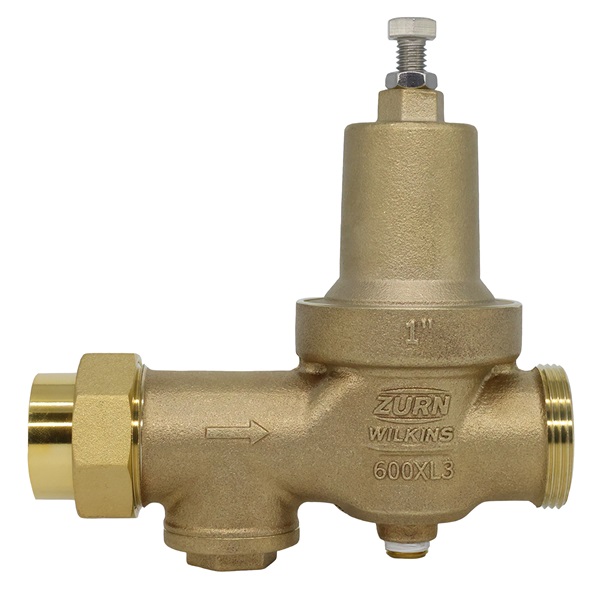

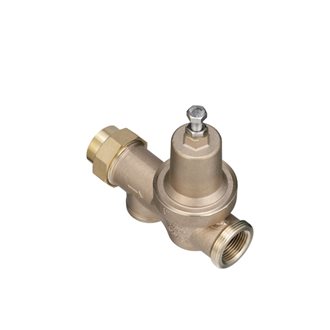

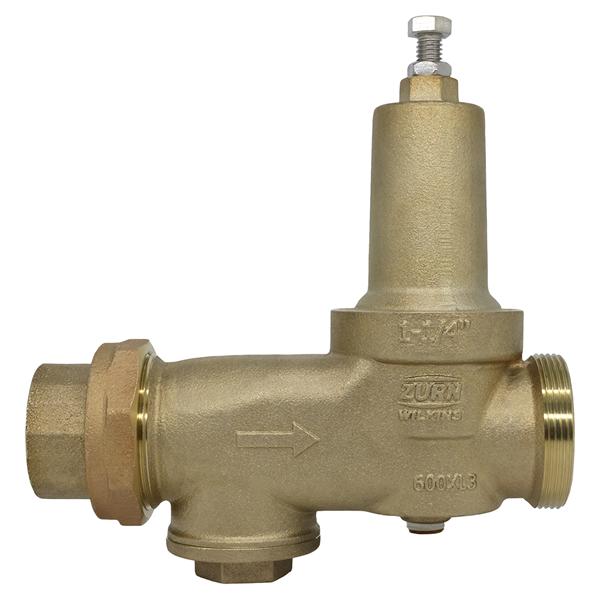

600XL3

Water Pressure Reducing Valve with Removable Integral Strainer and Venturi

The 600XL3 Pressure Reducing Valve with integral strainer is designed for residential and light commercial water lines, providing high-flow rate capacity and low-pressure falloff. The patented venturi technology ensures the valve delivers best-in-class flow performance. Constructed with an all-bronze body, stainless-steel stem, and cartridge internals, this valve offers superior corrosion resistance and increased product life, delivering exceptional value to the owner.

Where to Buy

PRV Calculator

Pressure_Reducing_Valve-Zurn_Wilkins-600XL3-Single Union_FNPT-(075-2_Inch).rfa

34-2-600XL3 - 3D.zip

34-2-600XL3_2D Drawings.zip

How to Use an RFA Family with a Type Catalog in Revit
Note: When downloading a Revit family, if a .txt file with the same name as the .rfa file is included, this indicates that the family uses a type catalog. In this case, follow the steps below to ensure Revit properly loads the predefined types.

Click here to view more instructions

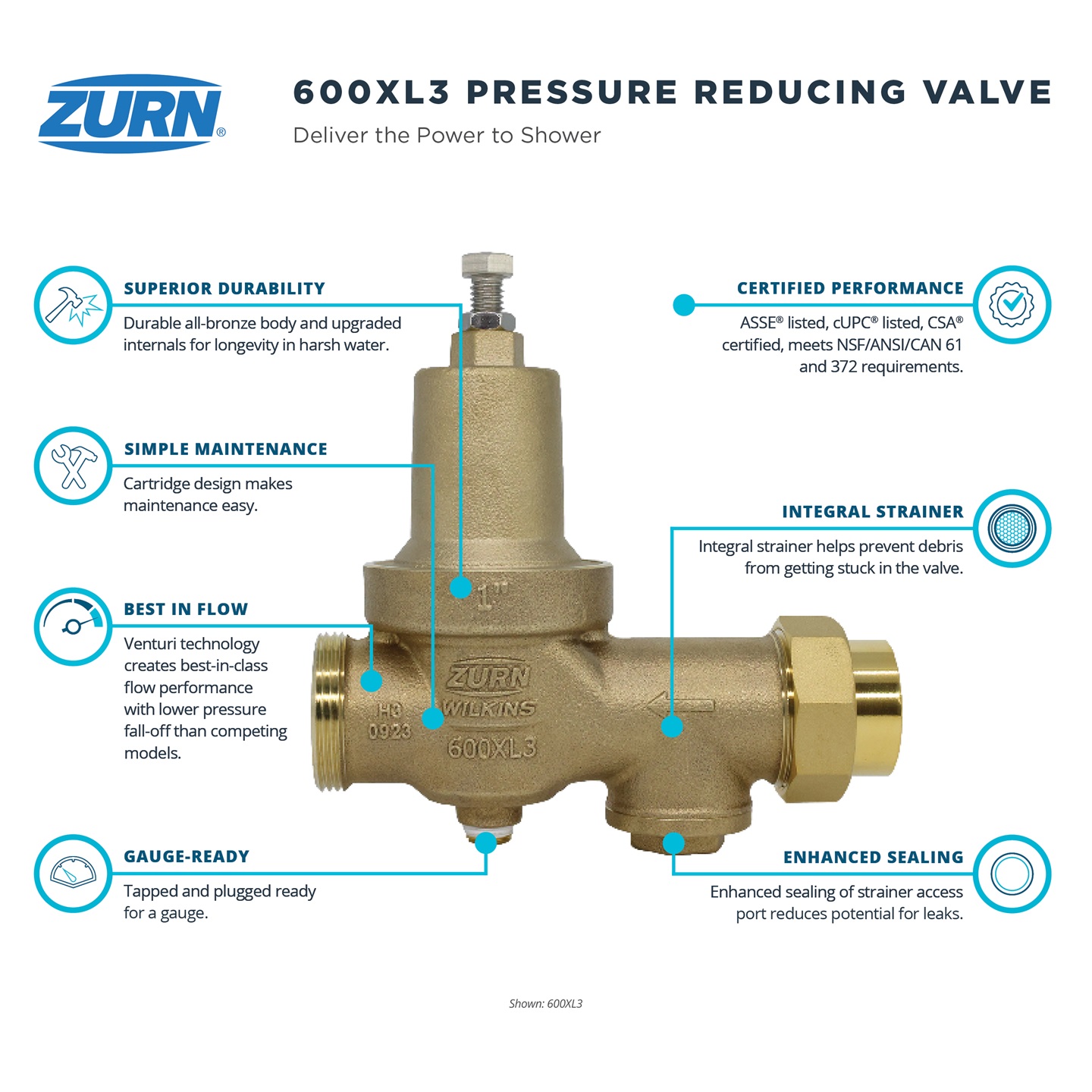

Reduces pressure loss over entire flow range, making specification and sizing easier and improving the user experience
Standard stainless internals and sealed cage provide superior durability
Works effectively for new and retrofit installations
Cartridge internals enhance repairability
Enhanced sealing of strainer access port reduces potential for leaks
Ideal for high-end residential and light commercial use
Meets the requirements of NSF/ANSI/CAN 61 and 372; is ASSE® Listed; cUPC® Listed; CSA® Certified, and Safe Drinking Water Act
Single or double union connection options allow for installation flexibility
